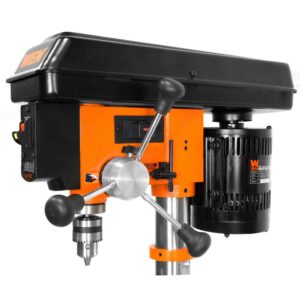

WEN 10 in. Variable Speed Drill Press

Remember when power tools were actually powerful? WEN’s 10 in. swing variable speed drill press with laser centering device is a powerhouse for your shop. Packed with features that you’ll find in larger more industrial type drill presses. This drill press has the power to drill through metal, wood and other materials. The variable speed feature allows you to target in the exact speed (infinitely from 530-3100) that works for your project. Simply move a lever and adjust the speed as needed. No pulleys and belts to change. Our design uses a mechanical variable speed which allows for the same power and torque through the entire speed range. A digital readout displays the running speed. Constructed with a rigid frame consisting of cast iron. Its powerful induction motor features ball bearings for an extended life and it all comes together with smooth and balanced performance even at high speeds. The 1/2 in. chuck with JT33 spindle taper gives you versatility with a variety of bits and features on-board chuck key storage, so you never have to hunt around for it. Worktable bevels 45° left and right for those tricky operations for the perfect right angles consistently. Base has pre-drilled holes for mounting onto a bench or work stand. Slotted table allows for mounting clamps and vises for effective mounting. The X-pattern laser locks-on to your drill points saving on guesswork and sparing expensive materials. Remember when you could drill with laser precision? Remember WEN.

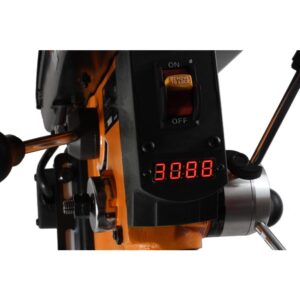

• Infinitely variable speed range 530-3100 RPMs, mechanical variable speed delivers equal torque throughout the range, LED read out displays speed
• Spindle travel of 2-2/5 in. with easy to read, adjustable depth stop for accurate and repeatable drilling operations
• 8 in. x 7-2/3 in. cast iron worktable features rack and pinion height adjustment and bevels up to 45° left and right
• Laser target your drilling operation marked with an X-pattern display
• Includes drill press, mechanical variable speed, 1/2 in. keyed chuck and key, laser, and tools for assembly
• Backed by a 2-year warranty

Specifications

• Magnetic: No
• Maximum Speed (rpm): 3100
• Spindle Travel: 2.40
• Chuck Capacity: 1/2 In.
• Chuck Key Storage: Yes
• Tools Product Type: Power Tool
• Amperage (amps): 4.8
• Minimum speed (rpm): 530
• 360- Degree Swivel: No
• Work Light: No
• Color Family: Orange
• Condition: New
• Number of Speeds: 20
• Bench & Stationary Tool Type: Drill Press
• Built-In Light: No
• Portability: Bench
• Cord Length (ft.): 6
• Voltage (volts): 120
• Lockout Power Switch: Yes
• Product Weight (lb.): 65
• Product Height (in.): 33.9
• Product Depth (in.): 11
• Product Width (in.): 13.5

 WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
