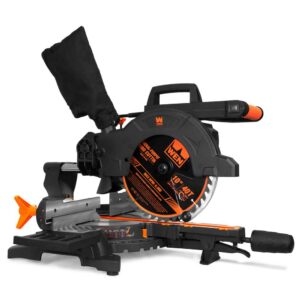

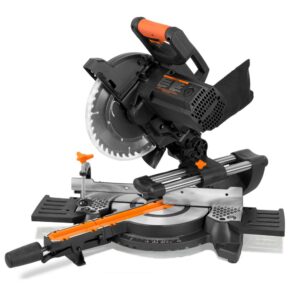

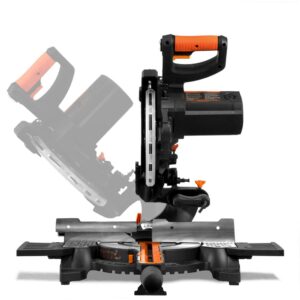

Create cuts at any angle with the WEN 10 in. Single Bevel Sliding Compound Miter Saw. Our powerful 15 Amp motor slices through even the hardest of woods, rotating the blade up to 4500-times per minute. This versatile saw miters up to 45° in either direction and bevels up to 45° to the left. Cut boards up to 12 in. W and 3-1/2 in. T or make compound cuts (45° bevel and 45° miter) in boards 8-1/4 in. W and 2-1/5 in. T. The saw features 9 positive miter stops: 2° at 15°, 2° at 22.5°, 2° at 30°, 2° at 45° and 1° at 0°. However, if a more unique angle is preferred, the miter lock still allows the saw to lock at any angle between those stops. This spacious saw also features a 7-1/2-in. crown molding nested capacity and a 6-3/4 in. base board vertical capacity. Measuring in at 17.5 in. x 28 in. x 16.5 in. you’ll never have to worry about your rail system interfering with your wall again. This package also includes a 10 in. 40-tooth carbide-tipped blade (with 5/8 in. arbor),2 table extensions,1 clamp assembly, a class II laser guide, a dust port adapter and a dust bag. The onboard laser illuminates the line of cut for maximum accuracy while the dust collection port allows for connection to either the included dust bag or your dust collection device of choice. Your miter saw comes backed by a2-year warranty, a stocked inventory of replacement parts and a friendly customer help line.
- Powerful 15 Amp motor cuts boards up to 12 in. W and 3-1/2 in. T

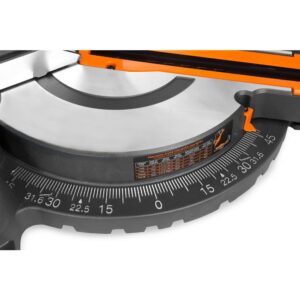

- Miter 45° in either direction (featuring 9 miter stops) or bevel 45° to the left
- Onboard class II laser guide illuminates your line of cut
- Features a 7-1/2 in. crown molding nested capacity and a 6-3/4 in. base board vertical capacity

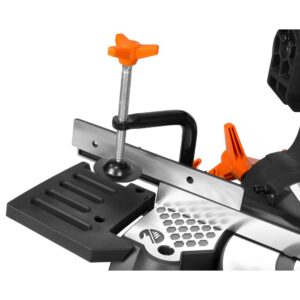

- Includes a 10 in. 40-tooth carbide-tipped blade, 2 table extensions, 1 Clamp assembly, a dust bag and a dust port adapter
- Backed by a 2-year warranty
Specifications
- Blade Diameter (in.): 10
- Dust collection type: Bag
- Maximum Cutting Thickness (in.): 3.5
- Bevel Type: Single
- Arbor Size: 5/8
- Cordless/ Corded: Corded
- Amperage (amps): 15 A
- Corded Tool Type: Miter Saw
- Color Family: Black
- Power Source: Electric
- Included Accessories: Allen Key/Wrench,Bag,Clamp,Laser Guide,Miter Fence,Side Extension
- Condition: New
- Power Tool Features: Bag Included,Laser Guide,Positive Stops
- Construction Material: Cast Aluminum
- Miter Saw Type: Sliding Compound
- Maximum Degree Miter Cuts – Left: 45
- Cuts Through: Wood
- Cord Length (ft.): 6
- Product Weight (lb.): 34.2
- Maximum Degree Miter Cuts – Right: 45
- Product Height (in.): 16.5
- Product Depth (in.): 17.5
- Product Width (in.): 28
