General International’s 13 in. 16 Speed Drill Press delivers the power you need for even the most demanding workloads. Loaded with features you would expect in a more industrial type drill presses including a bright LED work light. Choose from 16 speeds to match the ideal cutting conditions you need for your material. Featuring our global patented cross-pattern precision laser guide system; this drill press is perfect for the home, garage or worksite. The General DP2003 16 Speed Drill Press, allows you to drill true and exact holes more conveniently than with a handheld drill. This floor-standing, cast iron Drill Press has the power to drill through metal, wood and other materials. The stationary bit with a 5/8 in. chuck capacity, provides accuracy and control. The 13 in. rack and pinion worktable raises and lowers easily and rotates 45° to the right or left, allowing you to drill perfect right angles and consistent repetitive holes. This 16 Speed Drill Press is ideal for use in the home or professional shop on woodworking, metalworking or do-it-yourself projects. The DP2003 Drill Press has belt drive speed adjustment with a minimum speed of 260 RPM and a maximum speed of 4,220 RPM. The worktable can adjust up to 26 in. to accommodate large pieces. The large, front mounted power button is easy to manipulate, even when wearing gloves. For additional safety and stability the drill press can be bolted to the floor. Includes a 2 year limited warranty.

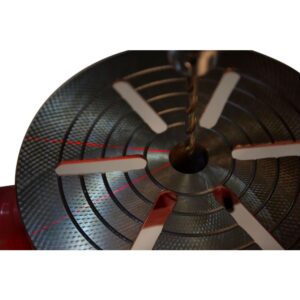

- Global patented cross-pattern precision laser and LED light
- Alignment and centering guide
- Swing: 13 in. drilling/chuck capacity: 5/8 in. taper: MT2, overall height: 64 in. induction motor

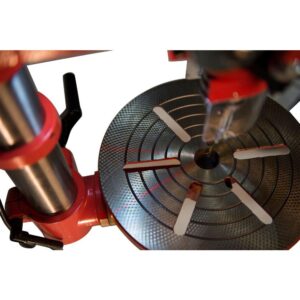

- Table tilt 0°-45° scale, spindle travel: 3-1/8 in.
- Unique built-in LED work light illuminates the work table

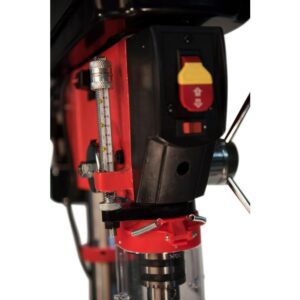

- Adjustable threaded-rod depth stop with scale
- Heavy cast iron and steel construction
- Solid cast iron mountable base and housing
- CSA certified
Specifications
- Magnetic: No
- Maximum Speed (rpm): 4220
- Spindle Travel: 3.13

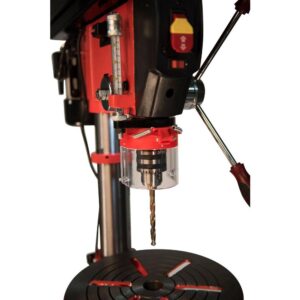

- Chuck Capacity: 5/8 In.
- Chuck Key Storage: No
- Tools Product Type: Power Tool
- Amperage (amps): 5
- Minimum speed (rpm): 260
- 360- Degree Swivel: No
- Work Light: Yes
- Color Family: Red
- Condition: New
- Number of Speeds: 16
- Bench & Stationary Tool Type: Drill Press
- Built-In Light: Yes
- Portability: Stationary
- Cord Length (ft.): 6
- Voltage (volts): 120
- Lockout Power Switch: Yes
- Product Weight (lb.): 112
- Product Height (in.): 13 in
- Product Depth (in.): 26
- Product Width (in.): 12
