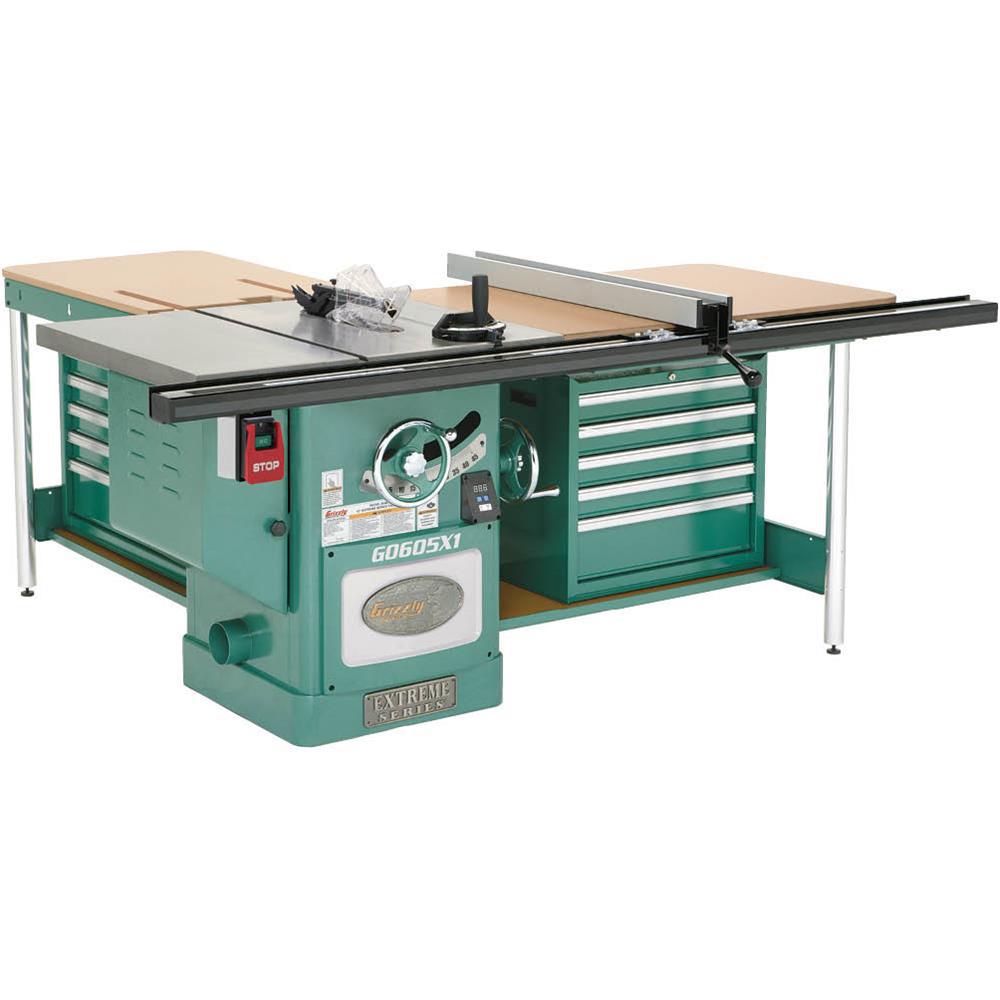

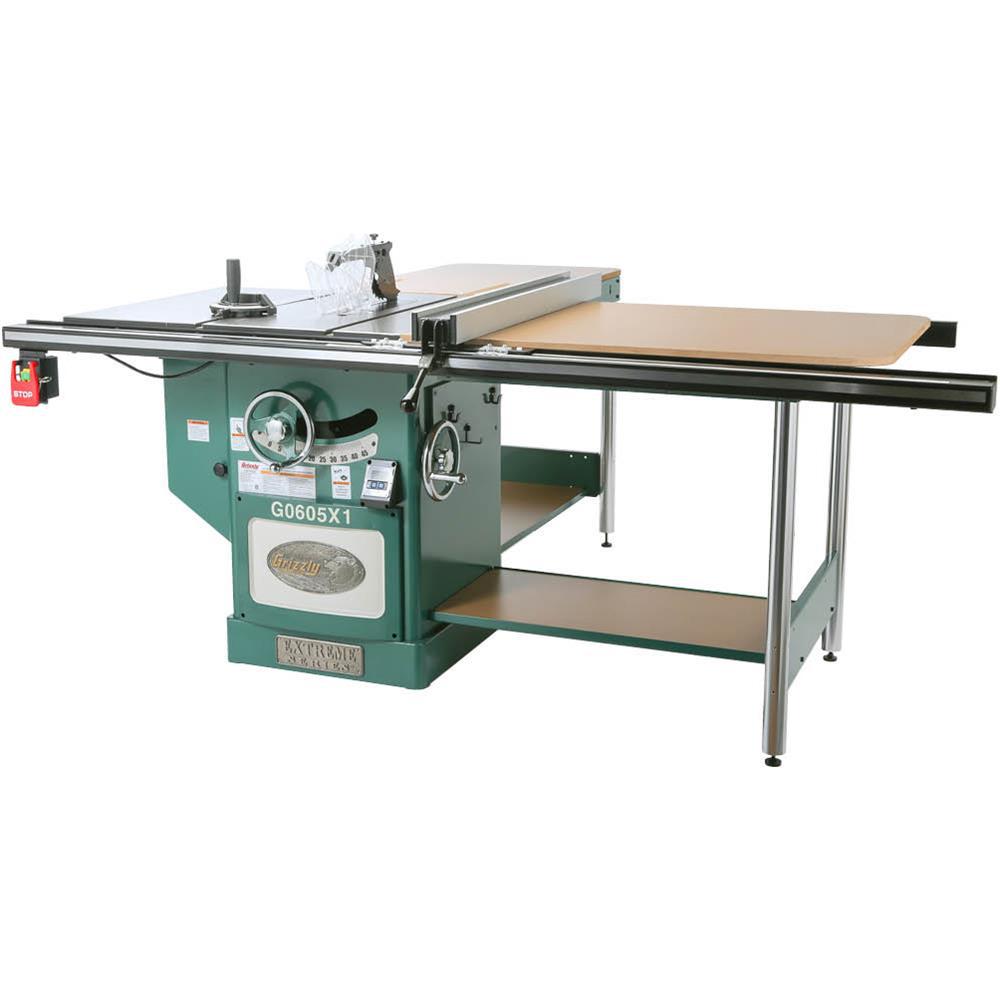

This Extreme Table Saw is ideally suited to handling large panels without blinking an eye. A right-hand and rear mounted extension table supports the widest panels before during and after the cut, and the large rail mounted switch control won’t get lost under the panel. Other features include ample storage shelves, a user friendly blade guard, a riving knife, a digital readout for blade angle and an efficient dust management system that includes an internal dust port and sloped cabinet floor that directs saw dust into the 4 in. dust port. Enjoy all of the innovative features this big capacity saw has to offer. CSA certified meeting CSA C22.2 #71.2-08, CSA C22.2 #105-1953, and UL 987 standards.
- Comfortable polished chrome handles
- Heavy-duty legs
- Large rail-mounted switch
- Blade angle digital readout
- Outfeed and extension tables with storage shelves

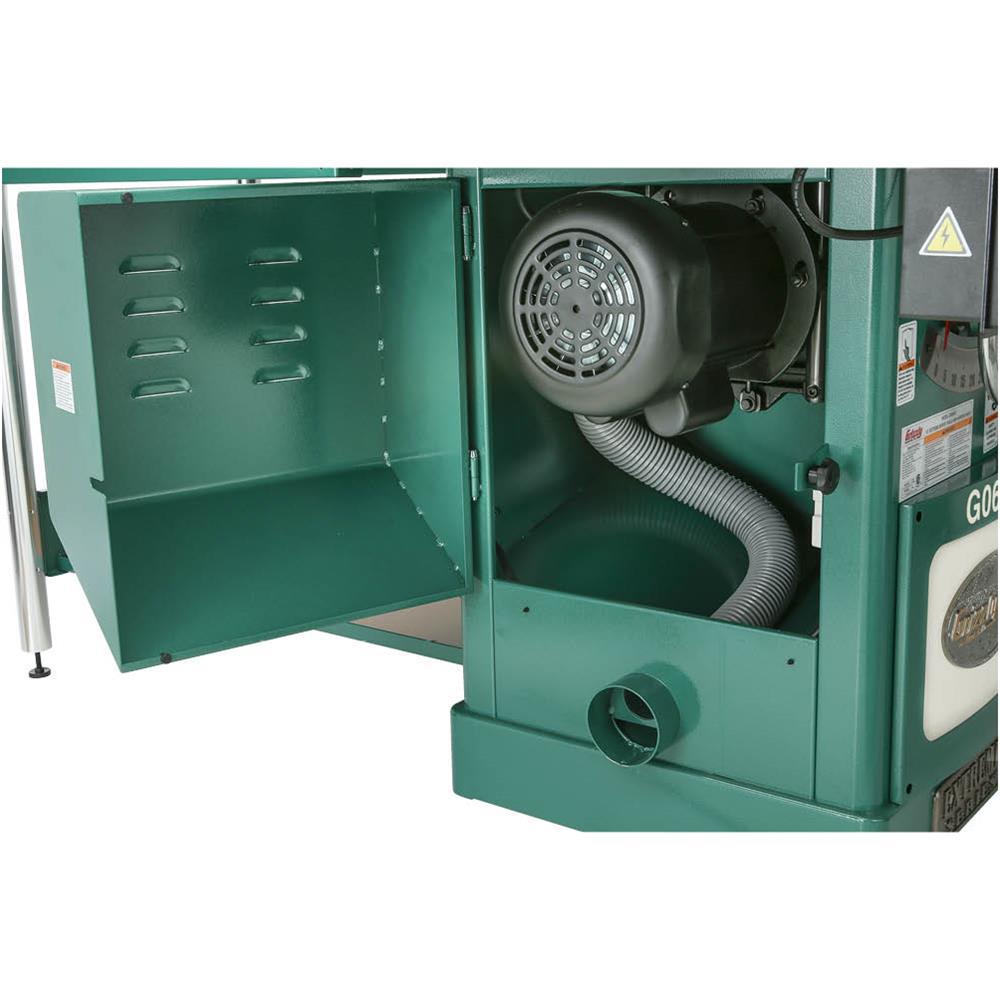

- Hinged motor cover
- Precision-ground cast-iron table
- 4 in. dust port
- Smooth and quiet poly-V serpentine belt system
- Included 12 in. x 60 in. T carbide-tipped blade

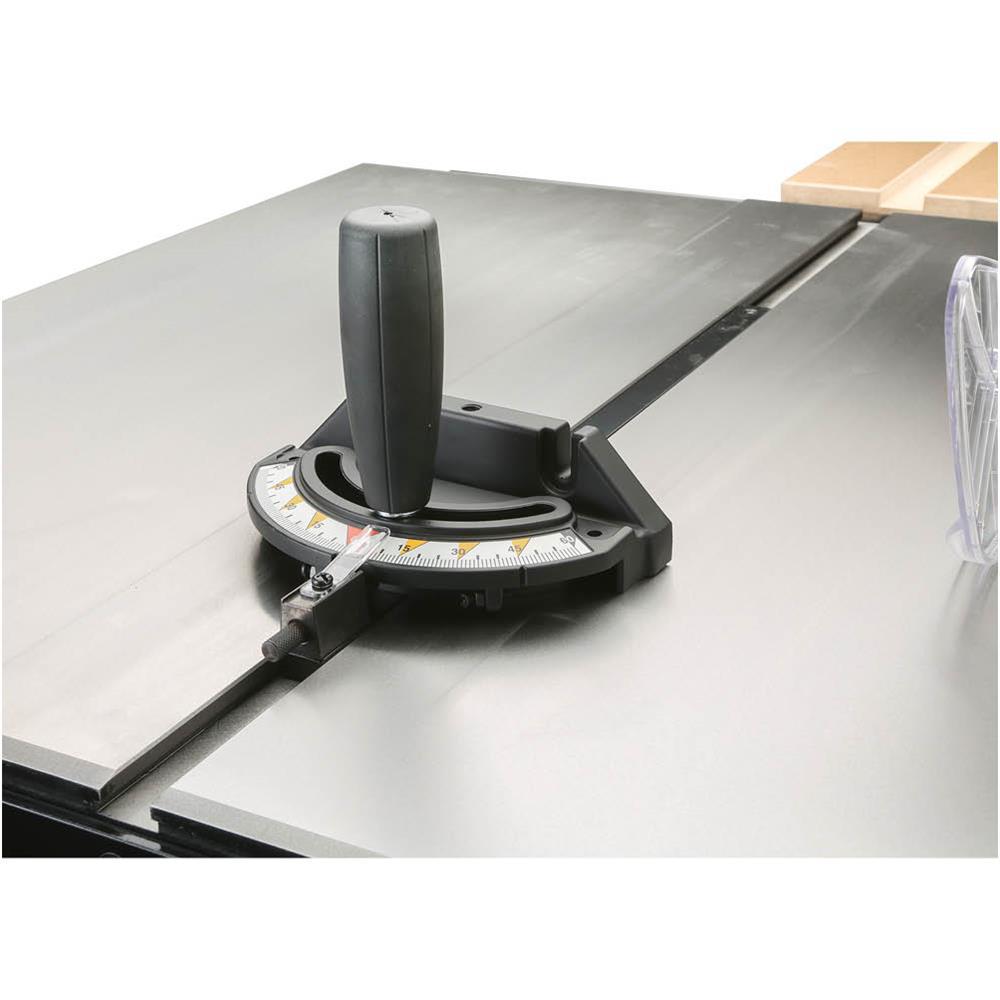

- Heavy-duty miter gauge

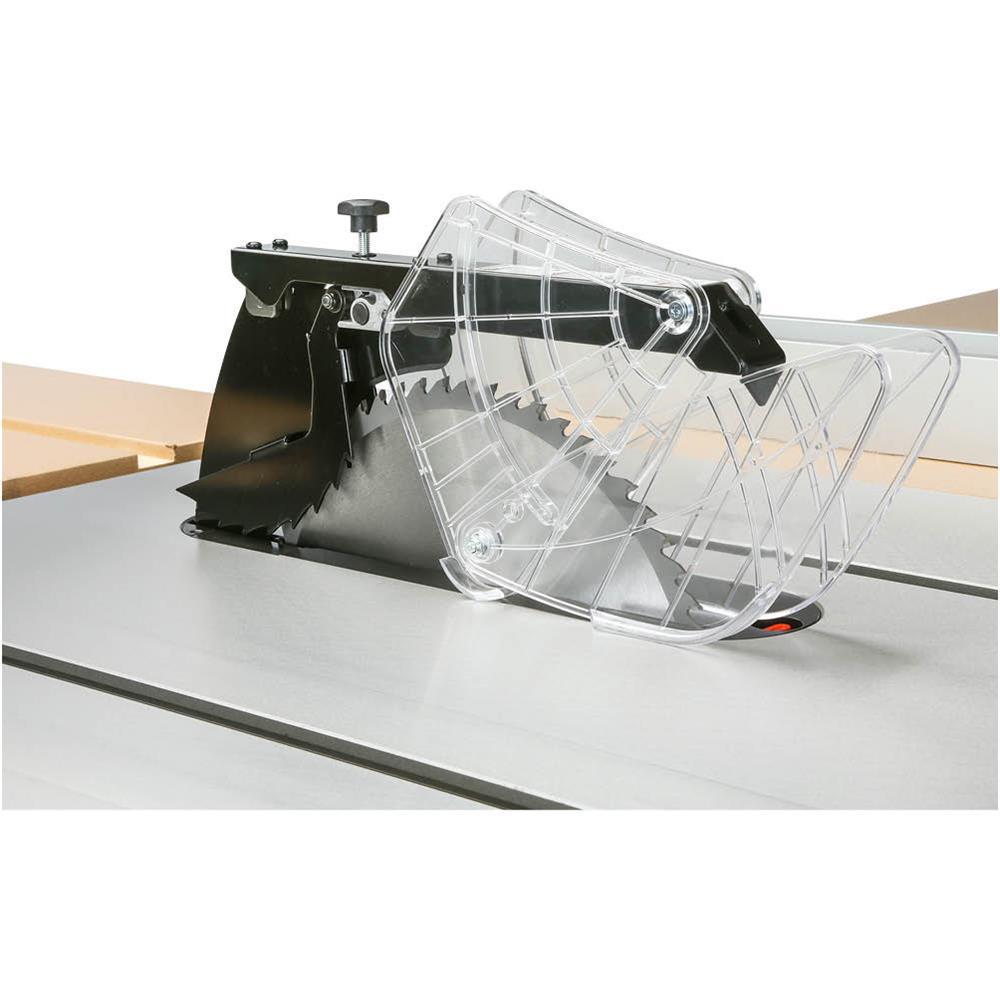

- Quick-release blade guard and spreader
- Riving knife included
Specifications
- Blade Diameter (in.): 12
- Maximum Speed (rpm): 3600
- Blade Speed: 3600
- Horsepower (hp): 5
- Table Tilt Right Max (degrees): 0
- Cordless/ Corded: Corded
- Dust Collection Method: 4 in. Dust Port
- Tools Product Type: Power Tool
- Amperage (amps): 18 A
- Rip Capacity – Left: 18
- Blade Location: Centered
- PT Horsepower (Hp): 5
- Table Tilt Left Max (degrees): 45
- Color Family: Multi-Colored
- Included Accessories: Blade Guard System,Blades
- Condition: New
- Power Tool Features: Blade Guard System,Stand Included
- Construction Material: Cast Iron
- Bench & Stationary Tool Type: Table Saw
- Cuts Through: Wood
- Portability: Stationary
- Cord Length (ft.): 10
- Depth Control: Adjustable
- Product Weight (lb.): 715
- Rip Capacity – Right: 52
- Maximum Cut Depth @ 45 Deg.: 2.75
- Maximum Cut Depth @ 90 Deg.: 4
- Table Length (in.): 78.75
- Product Height (in.): 42.5
- Product Depth (in.): 79.5
- Table Width (in.): 78.75
- Work Table Surface: 78.75 in. x 78.75 in.
- Product Width (in.): 79.5
